MACHEREY-NAGEL - GC Columns - Chromatography - Lab supplies

Perform successful separations in gas chromatography by using our fused silica capillary GC columns. MACHEREY‑NAGEL produces more than 50 stationary GC phases. Detailed information about the particular properties of OPTIMA GC phases, the established non-polar up to polar phases in WCOT capillary columns and phases for special separations like HYDRODEX and LIPODEX for chiral / enantiomer separations can be found at the equivalent GC columns (product detail website). Each MACHEREY‑NAGEL capillary GC column is individually tested according to the most important characteristic parameters in quality control and the results are documented in a certificate of analysis.

Catalog No.		Product	Net Price
	MN725812.25	GC column, Nonpolar–low polar, OPTIMA 5 MS Accent, 25 m L, 0.32 mm ID, 1 µm df	Special offer	Add to Cart
Method Gas chromatography (GC) Composition Silarylene phase with ultra-low bleeding - polarity similar to 5 % diphenyl – 95 % dimethylpolysiloxane Recommended application(s) All-round phase for environmental analyses, EPA methods, Food and drug analyses, Gas chromatography, GC, PCB, Pesticides, Trace analyses Storage temperature RT Hazardous material No Scope of delivery 1x GC column coiled/wound on metal cage, user manual, certificate of analysis Type GC column Brand OPTIMA Phase OPTIMA 5 MS Accent USP listing G27, G36 Polarity Nonpolar–low polar Column inner diameter 0.32 mm Film thickness 1 µm Column length 25 m Tmax isotherm 320 °C Tmax temp. program 340 °C Housing type Wall coated open tubular (WCOT) capillary column, internal wall of capillary is coated with a very fine film of liquid stationary phase Hardware Fused Silica coated with polyimide coiled/wound on metal cage Cage size 7" (inch) Integrated precolumn No
	MN725825.30	GC column, Nonpolar–low polar, OPTIMA 5 MS Accent, 30 m L, 0.25 mm ID, 0.5 µm df	Special offer	Add to Cart
Method Gas chromatography (GC) Composition Silarylene phase with ultra-low bleeding - polarity similar to 5 % diphenyl – 95 % dimethylpolysiloxane Recommended application(s) All-round phase for environmental analyses, EPA methods, Food and drug analyses, Gas chromatography, GC, PCB, Pesticides, Trace analyses Storage temperature RT Hazardous material No Scope of delivery 1x GC column coiled/wound on metal cage, user manual, certificate of analysis Type GC column Brand OPTIMA Phase OPTIMA 5 MS Accent USP listing G27, G36 Polarity Nonpolar–low polar Column inner diameter 0.25 mm Film thickness 0.5 µm Column length 30 m Tmax isotherm 320 °C Tmax temp. program 340 °C Housing type Wall coated open tubular (WCOT) capillary column, internal wall of capillary is coated with a very fine film of liquid stationary phase Hardware Fused Silica coated with polyimide coiled/wound on metal cage Cage size 7" (inch) Integrated precolumn No
	MN725826.30	GC column, Nonpolar–low polar, OPTIMA 5 MS Accent, 30 m L, 0.25 mm ID, 1 µm df	Special offer	Add to Cart
Method Gas chromatography (GC) Composition Silarylene phase with ultra-low bleeding - polarity similar to 5 % diphenyl – 95 % dimethylpolysiloxane Recommended application(s) All-round phase for environmental analyses, EPA methods, Food and drug analyses, Gas chromatography, GC, PCB, Pesticides, Trace analyses Storage temperature RT Hazardous material No Scope of delivery 1x GC column coiled/wound on metal cage, user manual, certificate of analysis Type GC column Brand OPTIMA Phase OPTIMA 5 MS Accent USP listing G27, G36 Polarity Nonpolar–low polar Column inner diameter 0.25 mm Film thickness 1 µm Column length 30 m Tmax isotherm 320 °C Tmax temp. program 340 °C Housing type Wall coated open tubular (WCOT) capillary column, internal wall of capillary is coated with a very fine film of liquid stationary phase Hardware Fused Silica coated with polyimide coiled/wound on metal cage Cage size 7" (inch) Integrated precolumn No
	MN725820.30	GC column, Nonpolar–low polar, OPTIMA 5 MS Accent, 30 m L, 0.25 mm ID,0.25 µm df	Special offer	Add to Cart
Method Gas chromatography (GC) Composition Silarylene phase with ultra-low bleeding - polarity similar to 5 % diphenyl – 95 % dimethylpolysiloxane Recommended application(s) All-round phase for environmental analyses, EPA methods, Food and drug analyses, Gas chromatography, GC, PCB, Pesticides, Trace analyses Storage temperature RT Hazardous material No Scope of delivery 1x GC column coiled/wound on metal cage, user manual, certificate of analysis Type GC column Brand OPTIMA Phase OPTIMA 5 MS Accent USP listing G27, G36 Polarity Nonpolar–low polar Column inner diameter 0.25 mm Film thickness 0.25 µm Column length 30 m Tmax isotherm 340 °C Tmax temp. program 360 °C Housing type Wall coated open tubular (WCOT) capillary column, internal wall of capillary is coated with a very fine film of liquid stationary phase Hardware Fused Silica coated with polyimide coiled/wound on metal cage Cage size 7" (inch) Integrated precolumn No
	MN725813.30	GC column, Nonpolar–low polar, OPTIMA 5 MS Accent, 30 m L, 0.32 mm ID, 0.5 µm df	Special offer	Add to Cart
Method Gas chromatography (GC) Composition Silarylene phase with ultra-low bleeding - polarity similar to 5 % diphenyl – 95 % dimethylpolysiloxane Recommended application(s) All-round phase for environmental analyses, EPA methods, Food and drug analyses, Gas chromatography, GC, PCB, Pesticides, Trace analyses Storage temperature RT Hazardous material No Scope of delivery 1x GC column coiled/wound on metal cage, user manual, certificate of analysis Type GC column Brand OPTIMA Phase OPTIMA 5 MS Accent USP listing G27, G36 Polarity Nonpolar–low polar Column inner diameter 0.32 mm Film thickness 0.5 µm Column length 30 m Tmax isotherm 320 °C Tmax temp. program 340 °C Housing type Wall coated open tubular (WCOT) capillary column, internal wall of capillary is coated with a very fine film of liquid stationary phase Hardware Fused Silica coated with polyimide coiled/wound on metal cage Cage size 7" (inch) Integrated precolumn No
	MN725811.30	GC column, Nonpolar–low polar, OPTIMA 5 MS Accent, 30 m L, 0.32 mm ID,0.25 µm df	Special offer	Add to Cart
Method Gas chromatography (GC) Composition Silarylene phase with ultra-low bleeding - polarity similar to 5 % diphenyl – 95 % dimethylpolysiloxane Recommended application(s) All-round phase for environmental analyses, EPA methods, Food and drug analyses, Gas chromatography, GC, PCB, Pesticides, Trace analyses Storage temperature RT Hazardous material No Scope of delivery 1x GC column coiled/wound on metal cage, user manual, certificate of analysis Type GC column Brand OPTIMA Phase OPTIMA 5 MS Accent USP listing G27, G36 Polarity Nonpolar–low polar Column inner diameter 0.32 mm Film thickness 0.25 µm Column length 30 m Tmax isotherm 320 °C Tmax temp. program 340 °C Housing type Wall coated open tubular (WCOT) capillary column, internal wall of capillary is coated with a very fine film of liquid stationary phase Hardware Fused Silica coated with polyimide coiled/wound on metal cage Cage size 7" (inch) Integrated precolumn No
	MN725810.50	GC column, Nonpolar–low polar, OPTIMA 5 MS Accent, 50 m L, 0.20 mm ID, 0.2 µm df	Special offer	Add to Cart
Method Gas chromatography (GC) Composition Silarylene phase with ultra-low bleeding - polarity similar to 5 % diphenyl – 95 % dimethylpolysiloxane Recommended application(s) All-round phase for environmental analyses, EPA methods, Food and drug analyses, Gas chromatography, GC, PCB, Pesticides, Trace analyses Storage temperature RT Hazardous material No Scope of delivery 1x GC column coiled/wound on metal cage, user manual, certificate of analysis Type GC column Brand OPTIMA Phase OPTIMA 5 MS Accent USP listing G27, G36 Polarity Nonpolar–low polar Column inner diameter 0.20 mm Film thickness 0.2 µm Column length 50 m Tmax isotherm 340 °C Tmax temp. program 360 °C Housing type Wall coated open tubular (WCOT) capillary column, internal wall of capillary is coated with a very fine film of liquid stationary phase Hardware Fused Silica coated with polyimide coiled/wound on metal cage Cage size 7" (inch) Integrated precolumn No
	MN725815.50	GC column, Nonpolar–low polar, OPTIMA 5 MS Accent, 50 m L, 0.20 mm ID,0.35 µm df	Special offer	Add to Cart
Method Gas chromatography (GC) Composition Silarylene phase with ultra-low bleeding - polarity similar to 5 % diphenyl – 95 % dimethylpolysiloxane Recommended application(s) All-round phase for environmental analyses, EPA methods, Food and drug analyses, Gas chromatography, GC, PCB, Pesticides, Trace analyses Storage temperature RT Hazardous material No Scope of delivery 1x GC column coiled/wound on metal cage, user manual, certificate of analysis Type GC column Brand OPTIMA Phase OPTIMA 5 MS Accent USP listing G27, G36 Polarity Nonpolar–low polar Column inner diameter 0.20 mm Film thickness 0.35 µm Column length 50 m Tmax isotherm 340 °C Tmax temp. program 360 °C Housing type Wall coated open tubular (WCOT) capillary column, internal wall of capillary is coated with a very fine film of liquid stationary phase Hardware Fused Silica coated with polyimide coiled/wound on metal cage Cage size 7" (inch) Integrated precolumn No
	MN725825.60	GC column, Nonpolar–low polar, OPTIMA 5 MS Accent, 60 m L, 0.25 mm ID, 0.5 µm df	Special offer	Add to Cart
Method Gas chromatography (GC) Composition Silarylene phase with ultra-low bleeding - polarity similar to 5 % diphenyl – 95 % dimethylpolysiloxane Recommended application(s) All-round phase for environmental analyses, EPA methods, Food and drug analyses, Gas chromatography, GC, PCB, Pesticides, Trace analyses Storage temperature RT Hazardous material No Scope of delivery 1x GC column coiled/wound on metal cage, user manual, certificate of analysis Type GC column Brand OPTIMA Phase OPTIMA 5 MS Accent USP listing G27, G36 Polarity Nonpolar–low polar Column inner diameter 0.25 mm Film thickness 0.5 µm Column length 60 m Tmax isotherm 320 °C Tmax temp. program 340 °C Housing type Wall coated open tubular (WCOT) capillary column, internal wall of capillary is coated with a very fine film of liquid stationary phase Hardware Fused Silica coated with polyimide coiled/wound on metal cage Cage size 7" (inch) Integrated precolumn No
	MN725826.60	GC column, Nonpolar–low polar, OPTIMA 5 MS Accent, 60 m L, 0.25 mm ID, 1 µm df	Special offer	Add to Cart
Method Gas chromatography (GC) Composition Silarylene phase with ultra-low bleeding - polarity similar to 5 % diphenyl – 95 % dimethylpolysiloxane Recommended application(s) All-round phase for environmental analyses, EPA methods, Food and drug analyses, Gas chromatography, GC, PCB, Pesticides, Trace analyses Storage temperature RT Hazardous material No Scope of delivery 1x GC column coiled/wound on metal cage, user manual, certificate of analysis Type GC column Brand OPTIMA Phase OPTIMA 5 MS Accent USP listing G27, G36 Polarity Nonpolar–low polar Column inner diameter 0.25 mm Film thickness 1 µm Column length 60 m Tmax isotherm 340 °C Tmax temp. program 360 °C Housing type Wall coated open tubular (WCOT) capillary column, internal wall of capillary is coated with a very fine film of liquid stationary phase Hardware Fused Silica coated with polyimide coiled/wound on metal cage Cage size 7" (inch) Integrated precolumn No

<< 12 3 4 5 6 7 8 9 10 >>

Overview

Gas chromatography products – GC columns and more

In gas chromatography (GC), the mobile phase is always a gas, mostly either He, N2 or H2. The stationary phase is often a viscous, gum-like liquid adhered to the inner wall of a capillary column (WCOT = Wall Coated Open Tubular). Transport of the components (analytes) occurs exclusively in the mobile phase, while separation only takes place in the stationary phase. The quality of a separation (resolution) depends on the residence time of the components within the stationary phase and on the rate of interactions. The type of interaction between component and phase (selectivity) is determined by the functional groups of the stationary phase. The polarity of the phase is a function of its substituents.

GC columns

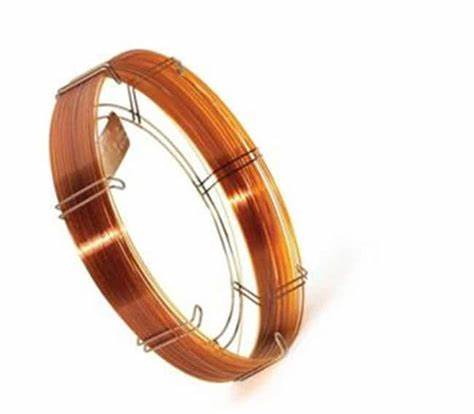

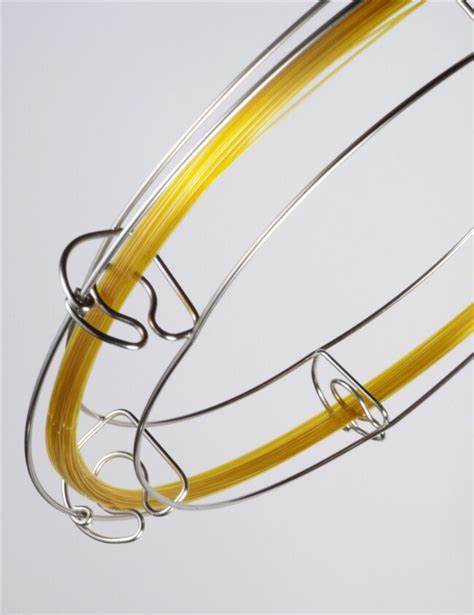

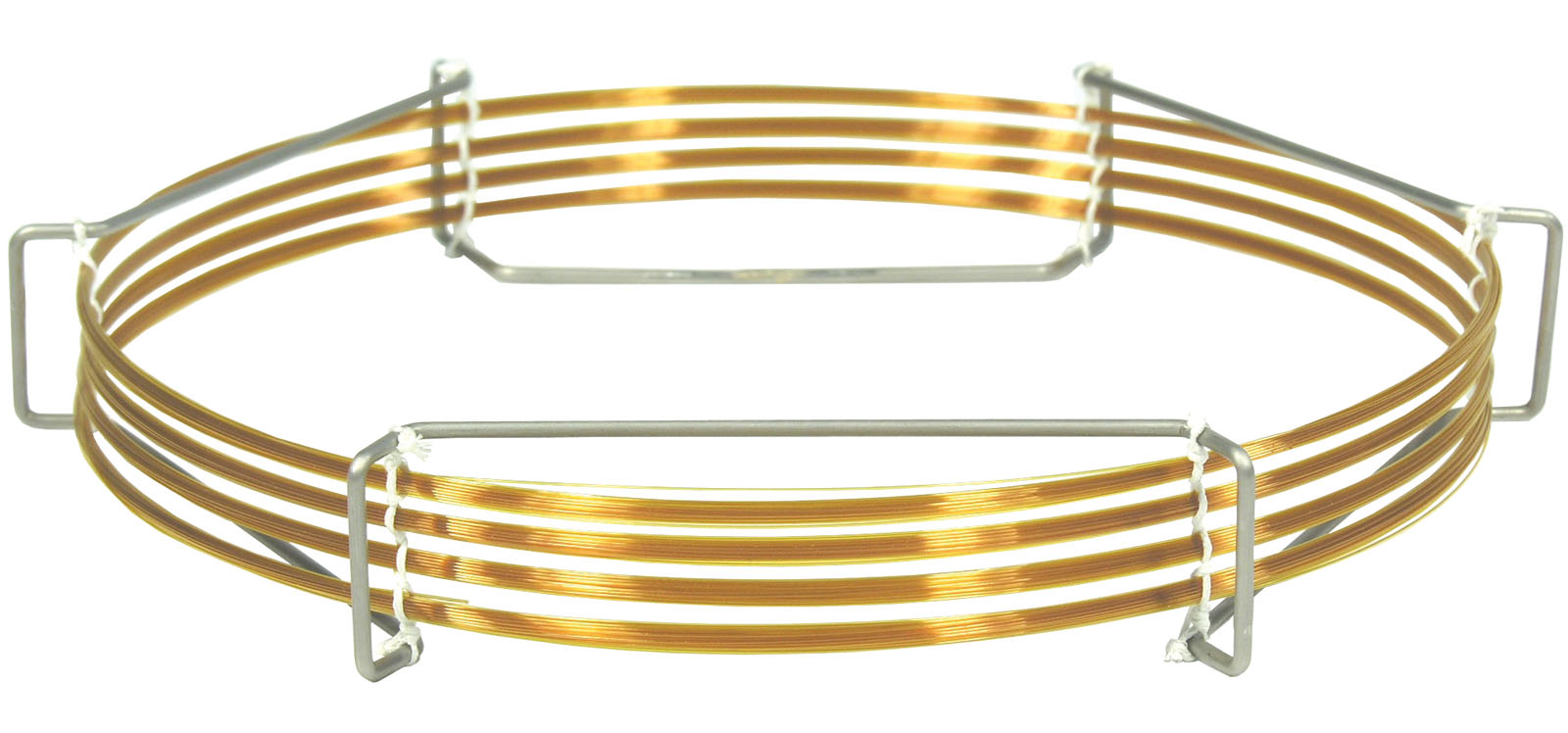

MACHEREY-NAGEL produces more than 50 GC phases. Most of them are USP listed. Each column is individually tested and supplied with test certificate (incl. test chromatogram) and instruction leaflet, but without fittings or ferrules. Columns have fused ends or are sealed with septa, to protect them from atmospheric oxygen. The standard size of a GC cage is 7 " (inch). In addition to the standard program we can often also offer custom-made columns (further dimensions, with integrated guard column, supplied on a 5 inch (5 ", ~13 cm) cage e.g., for the Agilent GC 6850. etc.).

Derivatization reagents

Besides GC columns we offer high quality derivatization reagents. For further information about these products please check "Derivatization reagents for GC".

Accessories for gas chromatography

Addtional to GC columns and derivatization reagents we also offer GC pre-columns (guard columns) and retention gaps, ferrules, capillary connectors and septa as well as general accessories and tools.

Resources

Instructions GC capillary columns

The new ultra low bleed high performance GC columns
