Catalog No. METL52005379
Part No. 52005379
Supplier METTLER TOLEDO

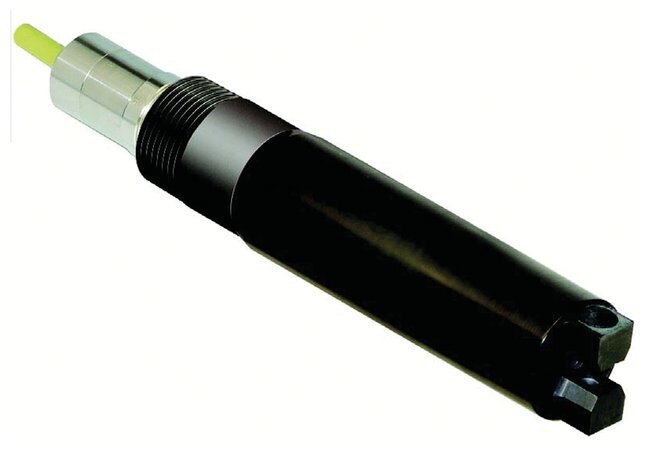

pH Sensor InPro3253i/SG/325
Net Price
Special offer
Availability

4 weeks

PROPERTIES
  • Cable Connector
    K8S
  • Certificates & Approvals
    CE METTLER TOLEDO Quality Certificate FM: IS Cl. I, II, III, Div 1, GR ABCDEFG/T6 EHEDG ATEX/IECEx: Ex ia IIC T6/T5/T4/T3 Ga/Gb PED
  • Connection
    Pg 13.5 Thread
  • Hazardous Area Approvals
    Yes
  • Hygienic/Biocompatibility Approvals
    Yes
  • ISM (Digital) or Analog
    ISM (Digital)
  • Measurement Parameter
    pH ORP/Redox
  • Model Family
    InPro3250(i)
  • Operating Pressure (Bar)
    0 to 4 barg
  • Operating Pressure (PSI)
    0 to 58 psig
  • Operating Temperature (Celsius)
    0 °C - 100 °C
  • Operating Temperature (Fahrenheit)
    32 °F - 212 °F
  • pH Range
    0 – 12
  • pH Sensing Technology
    Steam Sterilizable Glass Membrane (A41)
  • Primary Media/Application
    Pharmaceutical/Life Science Production
  • Process Connection
    Pg 13.5 Thread
  • Reference System
    Pre-pressurized liquid electrolyte, ceramic diaphragm, Argenthal cartridge with silver-ion trap
  • Refillable Electrolyte
    No
  • Sensor Length
    325 mm
  • Shaft Material
    Glass
  • Sterilizable/Autoclavable
    Yes
  • Temperature Sensor
    Digital
DESCRIPTION
The InPro 3253i SG/325 is a digital, pre-pressurized, low maintenance ISM pH & ORP sensor combined with a temperature sensor for in-line measurement in demanding applications. The 325 mm version is optimal for medium to long installation lengths.Optimized for Steam Sterilization The steam-sterilizable pH glass membrane of the InPro 3253i SG/325 makes it optimal for processes where sterilization or autoclaving are required. Low Maintenance and Easy-to-Use This digital pH sensor has Intelligent Sensor Management (ISM) technology, offering predictive diagnostics to reduce maintenance and calibration. Sterilizable and Autoclavable This sensor provides fast and precise pH and ORP measurement, even after repeated autoclaving and sterilization cycles.
