Catalog No. METR6.0912.110
Part No. 6.0912.110
Supplier Metrohm AG

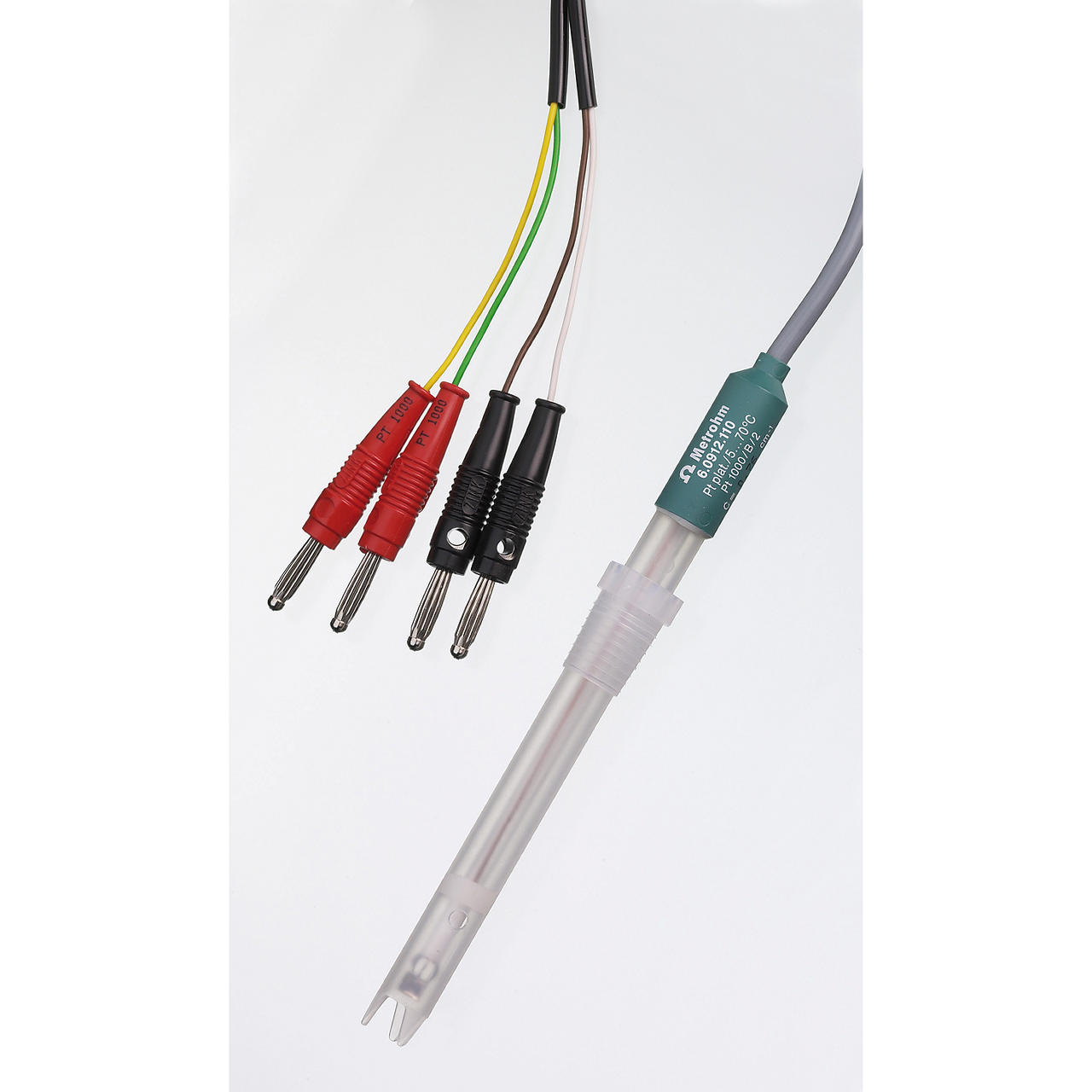

Conductivity measuring cell c = 0.8 cm-1 with Pt1000 (fixed cable)
Net Price
Special offer
Availability

6~8 weeks

PROPERTIES
  • Shaft material
    PP
  • Measuring range (theoretical)
    1 ... 100'000
  • Measuring unit
    uS/cm
  • Temperature range, long-term (°C)
    5 ... 70
  • Temperature range, short-term (°C)
    5 ... 70
  • Max. installation length (mm)
    125
  • SGJ sleeve
    Flexible SGJ sleeve
  • Shaft diameter top (mm)
    12
  • Shaft diameter bottom (mm)
    12
  • Min. immersion depth (mm)
    35
  • Electrode plug-in head
    Fixed cable 4xB (4 mm)
DESCRIPTION
Conductivity measuring cell with cell constant c = 0.8 cm-1, with integrated Pt1000 temperature sensor and with fixed cable (4 x B (4 mm)). Thanks to the robust/break-proof plastic shaft made of polypropylene and an impact protection, this sensor is mechanically very resistant. This sensor is suitable for measurements of medium conductivities (1 uS/cm to 100 mS/cm), e.g., in: drinking watersurface waterwastewaterThe sensor can be connected to an 856 Conductivity Module with the adapter box (6.2103.160).
