The product fulfills valid directives and standards when used within the conditions specified in the user manual. The product must also be used in the same state as it was delivered from Cytiva and connected only to other CE labeled Cytiva modules or other products as recommended. For regulatory details please see declaration of conformity.
Connections
Valco, i.d. 75 um, o.d. 287 um.
Operating pressure max.
450 bar (45 Mpa) (6500 psi)
Operating Temperature
4°C-40°C
Chemical stability
The wetted parts are resistant to organic solvents and salt buffers\ncommonly used in chromatography of biomolecules, except 100% ethyl acetate, 100% hexane and 100% tetrahydrofuran (THF).
Height
55 mm
Wetted Materials
Fused Silica
Wetted Part
Yes
Guidance
Optical path length: 6 mm
Relative humidity
0.2-0.95
Width
13
Depth
13 mm
Voltage
100-120/220-240 VAC
Protection class
IP 20
DESCRIPTION

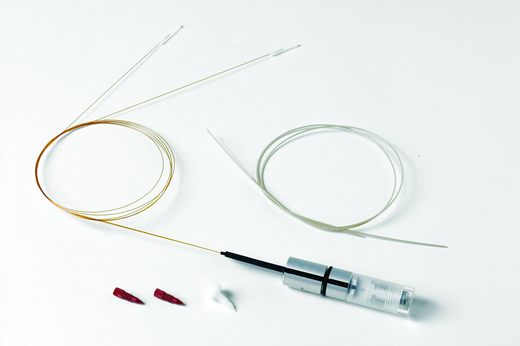

Extremely small UV cell (2 nl) for sensitive detection during analytical chromatography, utilizing ≤ 180 μm columns.
Extremely small cell volume (2 nl) for sensitive detection during analytical chromatography, utilizing ≤180 μm columns.
