Catalog No. METR6.00257.000
Part No. 6.00257.000
Supplier Metrohm AG

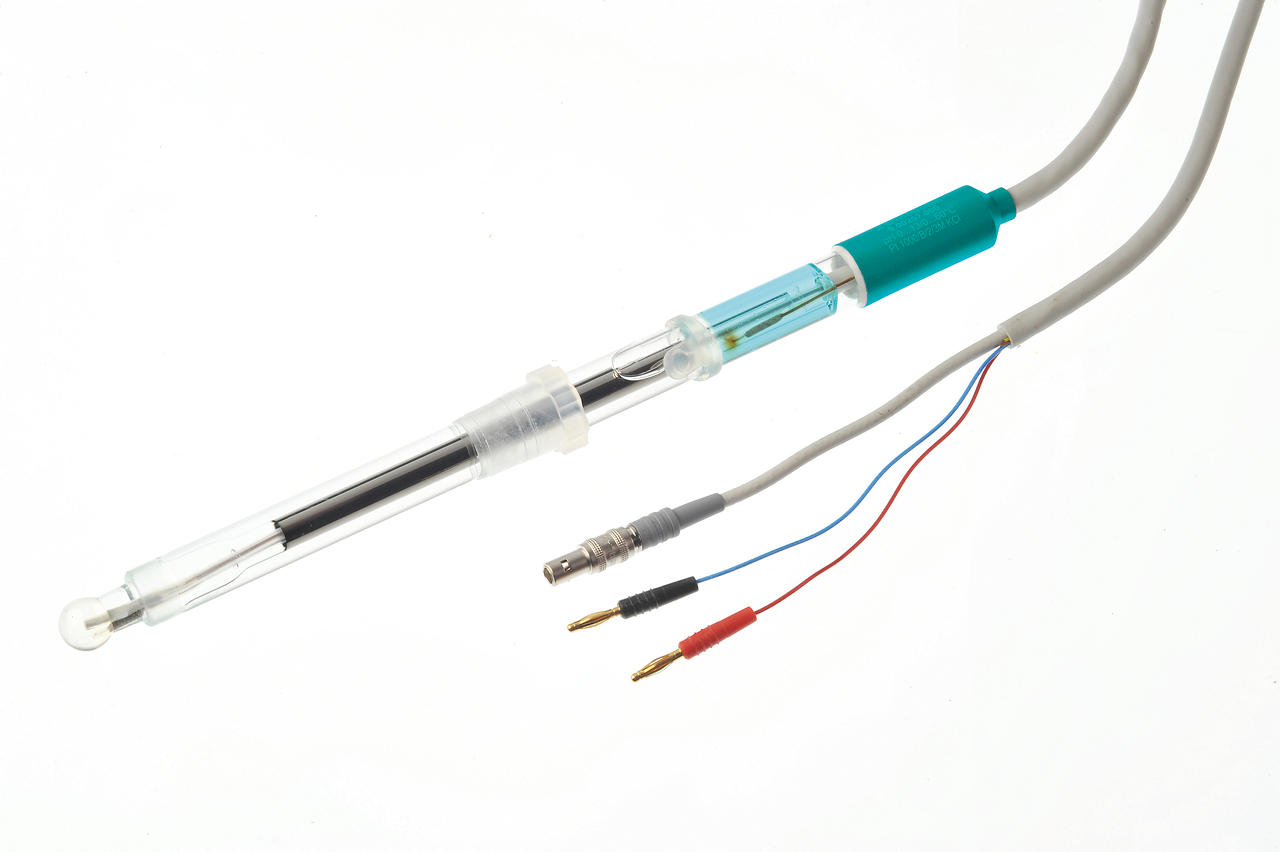

Aquatrode Plus with Pt1000 (fixed cable)
Net Price
Special offer
Availability

6~8 weeks

PROPERTIES
  • pH range
    0...13
  • Shaft material
    Glass
  • Measuring range (theoretical)
    0...13
  • Measuring unit
    pH
  • Temperature range, long-term (°C)
    0...60
  • Temperature range, short-term (°C)
    0...60
  • Max. installation length (mm)
    135
  • SGJ sleeve
    Flexible SGJ sleeve
  • Shaft diameter top (mm)
    12
  • Shaft diameter bottom (mm)
    12
  • Min. immersion depth (mm)
    20
  • Electrode plug-in head
    Fixed cable (l = 2 m) with plug F + 2 x B
  • Indicator electrode shape
    Sphere
DESCRIPTION
Combined pH electrode with integrated Pt1000 temperature sensor and fixed cable (2.0 m, banana plug 2 mm) for pH measurement/titration in low-ion aqueous media (e.g., drinking water, process water), and also exhibits an exceptionally rapid response time in these samples. The fixed ground-joint diaphragm is insensitive to contamination. Storage in storage solution is recommended when c(KCl) = 3 mol/L is used as bridge electrolyte.The bridge electrolyte can be replaced with a chloride-free electrolyte (e.g., potassium nitrate c(KNO3) = 1 mol/L (6.2310.010)), storage in used electrolyte.
