Catalog No. CYT18110776
Part No. 18110776
Supplier Cytiva
Monitor pH/C-900
Net Price
12720
Availability

4 weeks

PROPERTIES
  • Material
    Glass\nPerfluororubber (FFKM)\nPolyetheretherketone (PEEK)\nPolytetrafluoroethylene (PTFE)\nTitanium alloy (Ti alloy)\nChlorotrifluoroethylene (CTFE)
  • Operating pressure max.
    50 bar (5 MPa) (725 psi)
  • Operating Temperature
    4°C-40°C
  • Order Information
    Conductivity cell, pH flow cell and pH electrode must be ordered separately.
  • Weight
    8.5
  • Height
    100 mm
  • Wetted Part
    No
  • Relative humidity
    20%-95% (non condensing)
  • Width
    260
  • Depth
    370 mm
  • Voltage
    100-120/220-240 VAC
  • Protection class
    IP 20 (Housing) \nIP 44 (Flow cell)
  • pH Stability Long Term
    2-12
DESCRIPTION

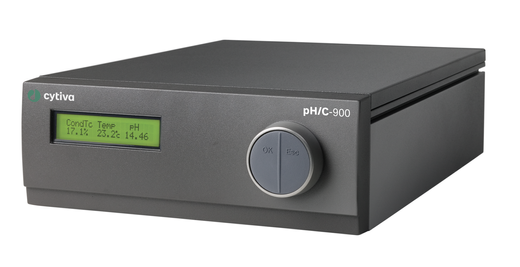

Monitor pH/C-900 is a combined unit for accurate, on-line monitoring of pH and conductivity in a wide range of liquid chromatography applications. Measures pH and conductivity simultaneously (temperature-compensated). Complements UV monitoring by providing true elution conditions. Extremely useful for optimizing gradients, monitoring reproducibility over several runs, and ensuring the quality of samples, buffers, and data from other instruments. Wide dynamic range from 0-14 pH units and 1 µS/cm to 999.9 mS/cm eliminates range settings. Highly suitable for applications ranging from low conductivity reversed phase to high salt separations. High-performance flow cells handle flow rates up to 100 ml/min. Monitor pH/C-900 precisely measures the elution conditions of chromatographic separations, either as a component of ÄKTAdesign systems or as a standalone instrument. It displays pH, conductivity, and temperature. Since temperature can influence both pH and conductivity, the monitor compensates for temperature variations of these readings. Self-diagnostics ensure continual reliability and reproducibility. Both the pH and the conductivity/temperature flow cells feature low cell volume and high linearity for accurate measurements.
